Catros⁺ 12003-2TS trailed compact disc harrow

For Catros⁺-2TX and Catros⁺ 12003-2TS

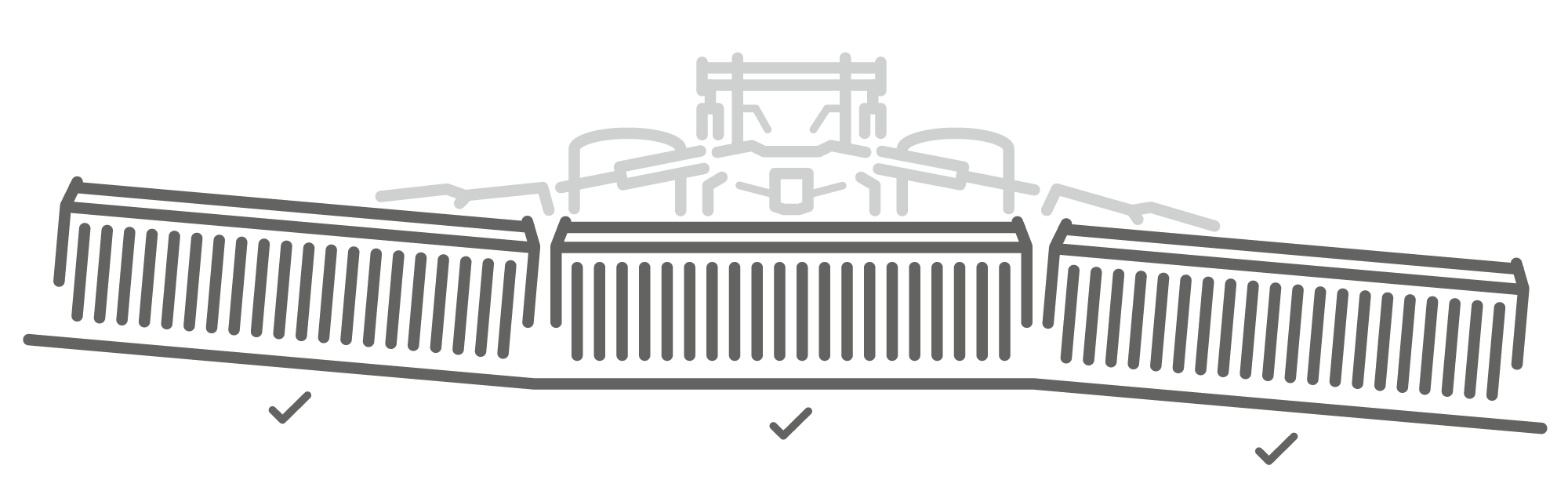

Optimum ground contour following

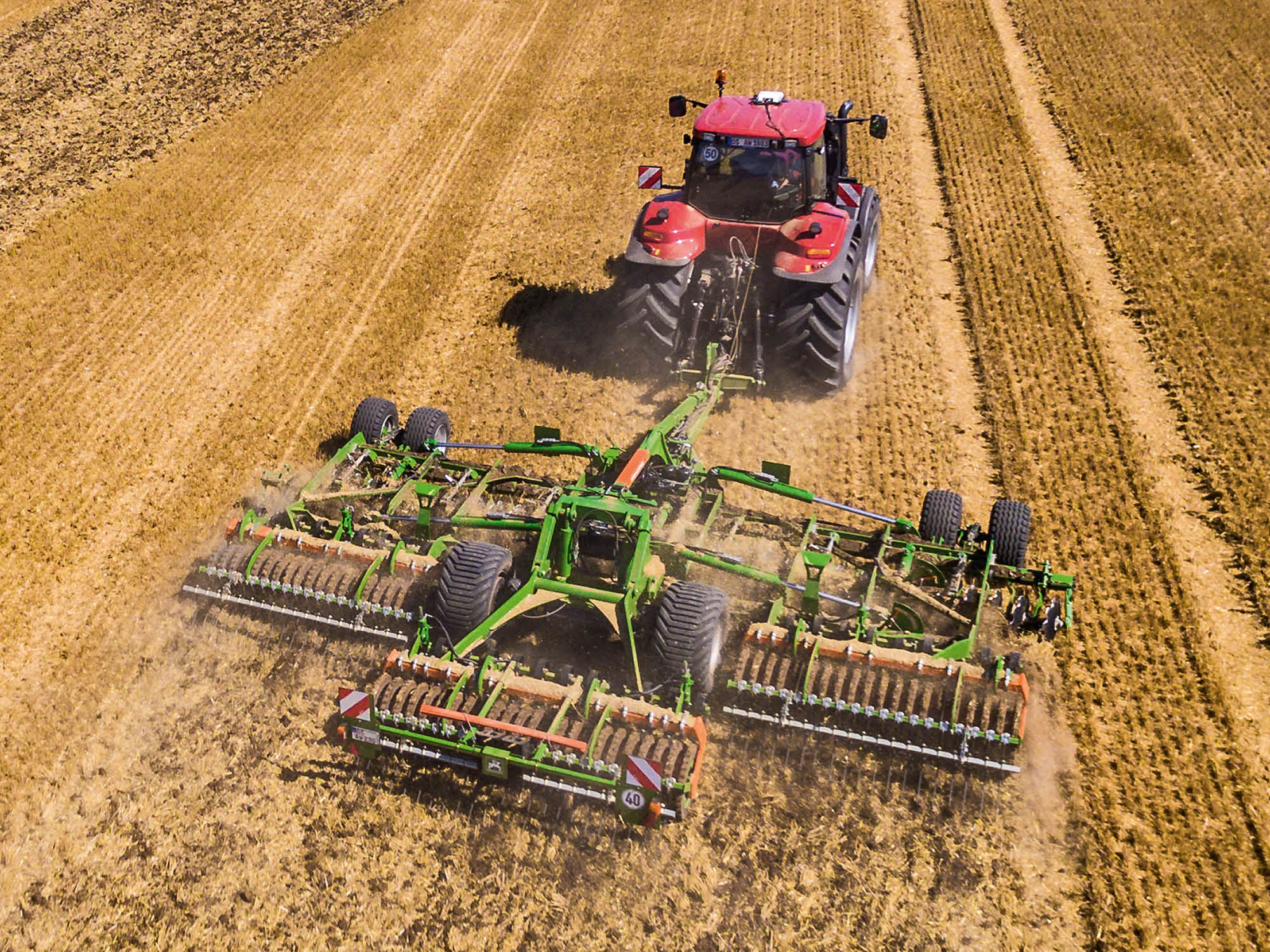

The Catros⁺-2TX and Catros⁺ 12003-2TS trailed compact disc harrows are divided into distinct sections, each of them independently operating in order to ensure a consistent working depth — even when working on slopes or in valleys. Each of the Catros⁺-2TX models features outer sections and one center section. The Catros+ 12003-2TS consists of both outer and inner sections. Segment depth is controlled by the rear roller. The outer segments at the front of the Catros⁺-2TX are supported by the support wheels and the middle segment by the drawbar. The front of each segment in the Catros+ 12003-2TS is carried by a support wheel.

The short distance between the support wheels and the roller provides excellent contour following over hills and through valleys.

Perfect working performance
The full weight of the central running gear of the Catros⁺-2TX and the weight of the rear running gear of the Catros⁺-2TS come to bear on the discs during operation; this ensures that the discs achieve good penetration — even under tough conditions.

Smooth, even ride
The wing sections are hydraulically pre-pressurized via hydraulic accumulators during operation. This allows the sections to follow ground contours independently, both upwards and downwards. As a result, the entire machine frame follows ground contours optimally, yielding an even work profile over the entire working width. Individual contour following allows for a smooth ride even under difficult operating conditions, thus guaranteeing an even quality of work.

Advantages of ContourFrame

• The ground contours are followed by the individual sections both upwards and downwards, achieving even work profiles
• Good penetration, even under tough conditions, thanks to the weight of the chassis pushing down on the discs
• The Catros-2TX trailed compact disc harrows are also available without ContourFrame as an option
